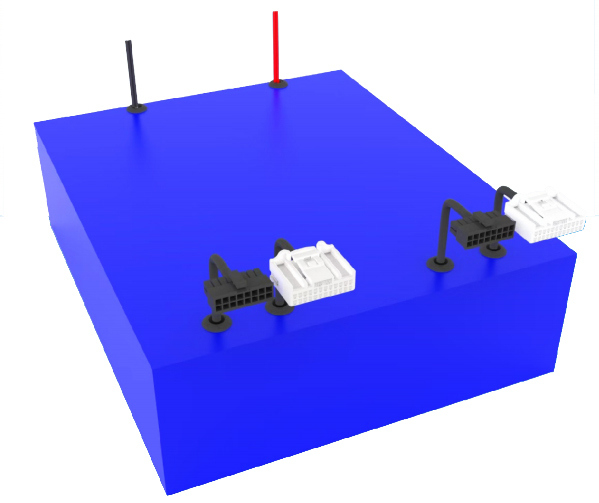

High Power LTO Battery Pack 52.8V 9Ah For Automated Guided Vehicles

5000
MOQ
High Power LTO Battery Pack 52.8V 9Ah  For Automated Guided Vehicles
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Voltaje nominal: 50.2V
Capacidad nominal: 9Ah
Energía: 475,2Wh
Resistencia: ≤100mΩ
Vida en bicicleta: >10000ciclos Capacidad restante>80%
Peso: 7 kg
Dimensión ((W × D × H): 215 mm × 261 mm × 75 mm
Información básica
Lugar de origen: PORCELANA
Nombre de la marca: Ecolite
Número de modelo: LTO48V40AH
Pago y Envío Términos
Condiciones de pago: T/T
Capacidad de la fuente: 5000 unidades/mes
Descripción de producto

High Power LTO Battery Pack 52.8V 9Ah For Automated Guided Vehicles

For Saudi Arabia’s road CCTV operators, the biggest challenges in outdoor surveillance power are extreme temperature swings, frequent maintenance downtime, and the need for 24/7 uninterrupted power. The EcoLite LTO 50.4V 40Ah LTO Battery pack is engineered to solve these pain points—built with Lithium Titanate (LTO) technology, it delivers unmatched reliability, durability, and performance for road monitoring systems in Saudi Arabia’s harsh environmental conditions. As a dedicated LTO Battery pack for CCTV, it’s designed to keep your surveillance cameras running smoothly, even in remote or extreme-heat locations.


Electrical Parameters
Nominal Voltage 50.2V
Rated Capacity 9Ah
Energy 475.2Wh
Resistence ≤100mΩ
Efficiency ≥0.98
Cycle life >10000cycles Remaining capacity>80%
Max.Modules in Series/Parallel 22S/6P



Mechanical Parameters
Dimension(W×D×H) 215mm×261mm×75mm
8.46''×10.28''×2.95''
Weight 7kg
Terminal Type 43025-1600,501646-2400
Battery Housing Exoxy board+PVC
NTC Number
Cell Type-Chemistry LTO
Communication According to BMS




Discharge Parameters
Continuous Discharge Current 9A
Pulse Discharge Current 60A(<2S),50A Fuse
Recommended Volt. Disconnect 33V
BMS Discharge Cut-off Voltage 35.2V According to BMS settings
Reconnect Voltage 39.6V According to BMS settings
Short Circuit Protection According to BMS settings




Charge Parameters
Charge Method CC-CV
Charge Voltage 60.5V~61.6V
Recommended Float Voltage 59.4~60.5V
Recommended Charge Current 9A
Maximum Charge Current 30A
BMS Charge Cut-off Voltage 61.6V According to BMS settings




Temperature Parameters
Discharge Temperature -40℃ to 50 ℃
Charge Temperature -40℃ ℃to 65 ℃
Storage Temperature 0℃ to 45 ℃
BMS High Temperature Cut-off 65℃



High Power LTO Battery Pack 52.8V 9Ah  For Automated Guided Vehicles 0
The Safest Lithium Technology Available:
Experience true peace of mind. Unlike other lithium-ion batteries, our LTO Battery Pack utilizes inherently stable Lithium Titanate chemistry, drastically reducing risks of thermal runaway and making this the safest LTO Battery Pack for your workforce and facilities.
Unprecedented Cycle Life, Drastically Lower TCO:
Maximize your return on investment. This LTO Battery Pack is engineered to withstand over 10,000 cycles while retaining more than 80% of its capacity. This exceptional longevity means this specific LTO Battery Pack outlasts conventional batteries by years, significantly reducing your total cost of ownership and frequency of replacement.
Rapid Charging for Maximum Uptime:
Keep your AGVs and robots in motion. Designed for high-current input, this LTO Battery Pack can be charged at up to 30A, slashing recharge times and enabling rapid turnaround in 24/7 operational environments. The efficiency of this LTO Battery Pack ensures more energy is stored, not wasted as heat.

High Power Density & Superior Discharge Capability:
Deliver peak power on demand. With a high discharge current capability, this LTO Battery Pack provides the necessary surge for start-ups and heavy loads, ensuring consistent performance for all your high-power equipment.
Flexible & Smart BMS Integration:
Tailor the protection to your system. This LTO Battery Pack is BMS-ready, allowing you to integrate a Battery Management System that perfectly matches your voltage and temperature cut-off requirements. The inclusion of an NTC thermistor allows for precise thermal monitoring, making this a smart and secure LTO Battery Pack.





Ideal Applications:

Automated Guided Vehicles (AGVs)
Industrial Robotics and Automation Systems
Electric Vehicles, Scooters, and Specialized Mobility
Backup Power Systems & UPS



Select the LTO Battery Pack that ensures optimal performance, safety, and durability. By focusing on the superior attributes of Lithium Titanate technology, we have created an LTO Battery Pack that stands apart in a crowded market.
